Miro-CG M-Hex Rooftop Pipe Support

Miro-CG M-Hex Rooftop Pipe Support

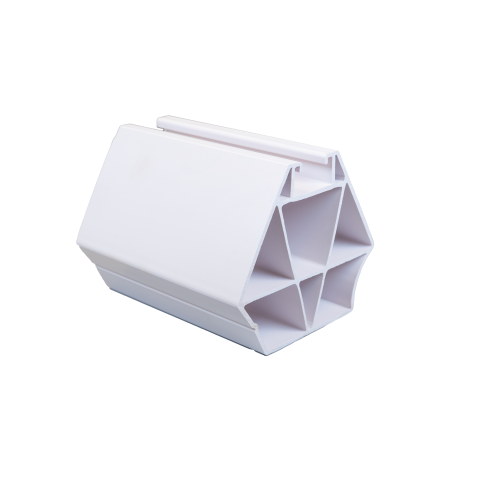

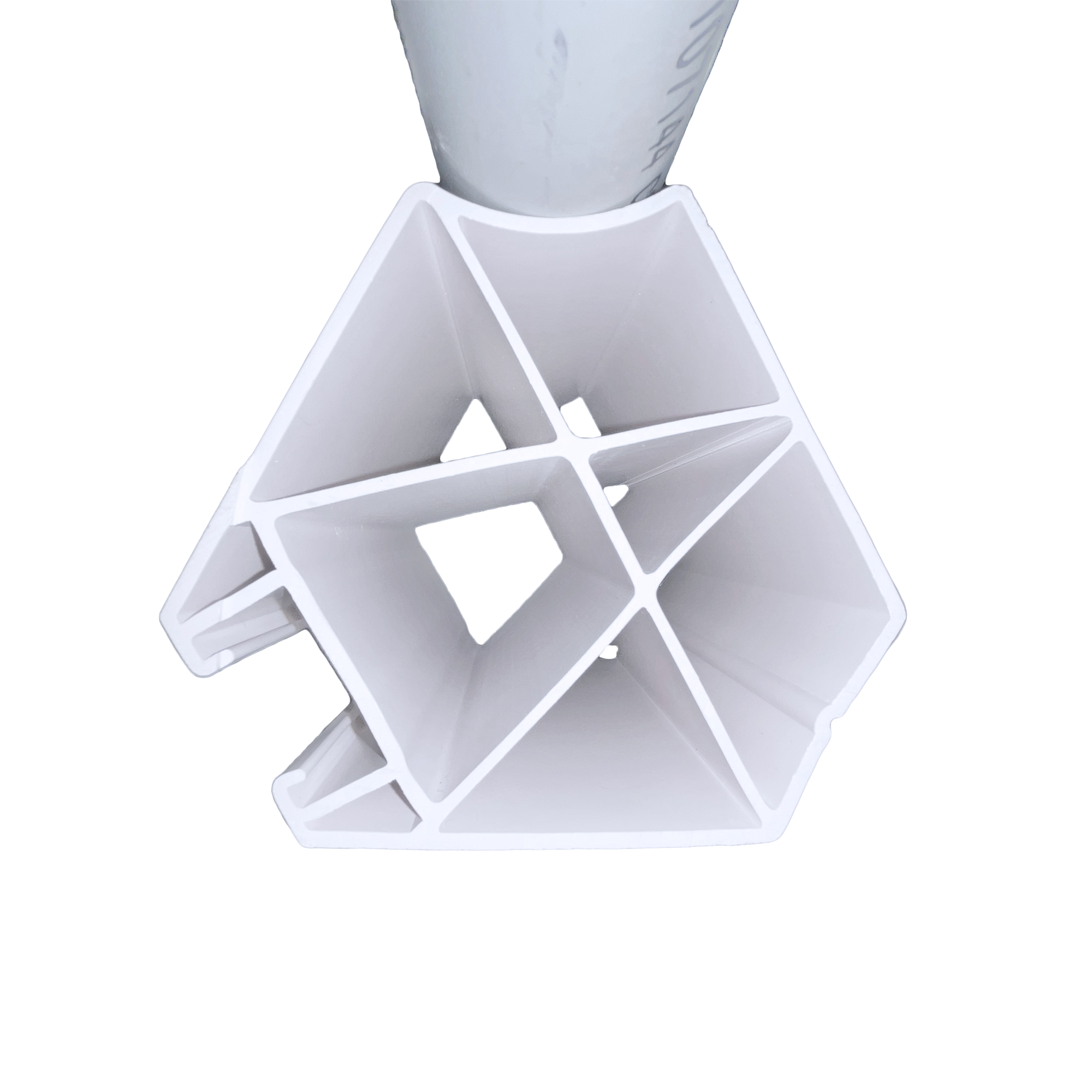

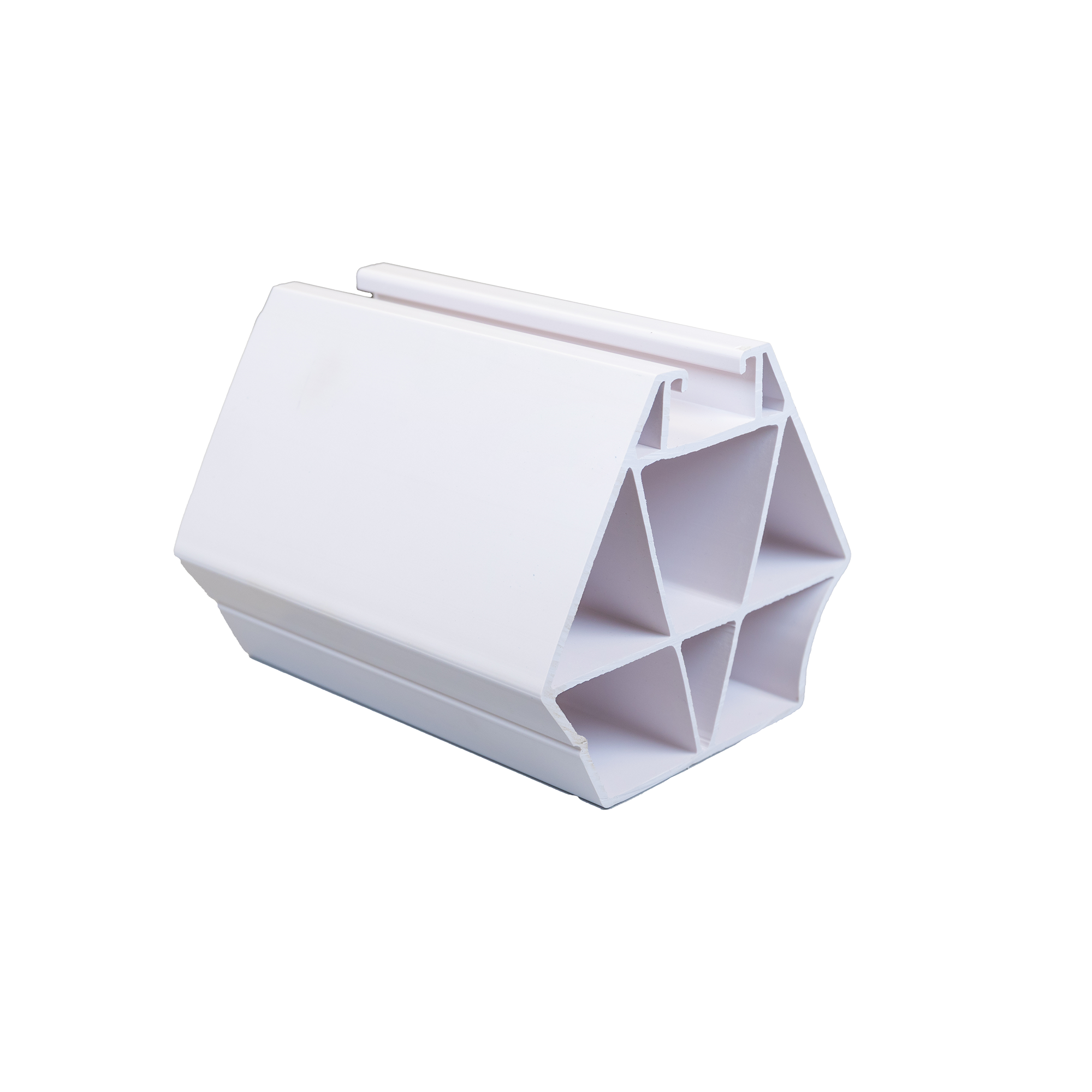

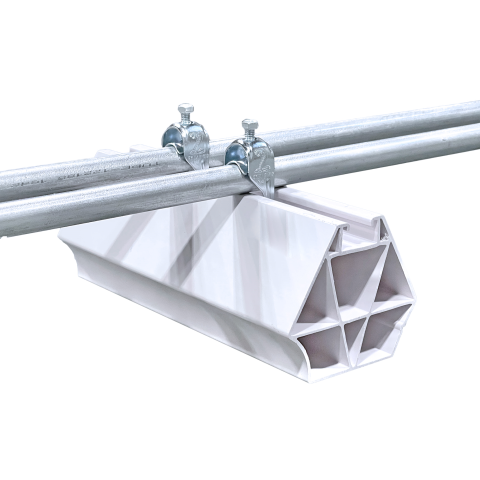

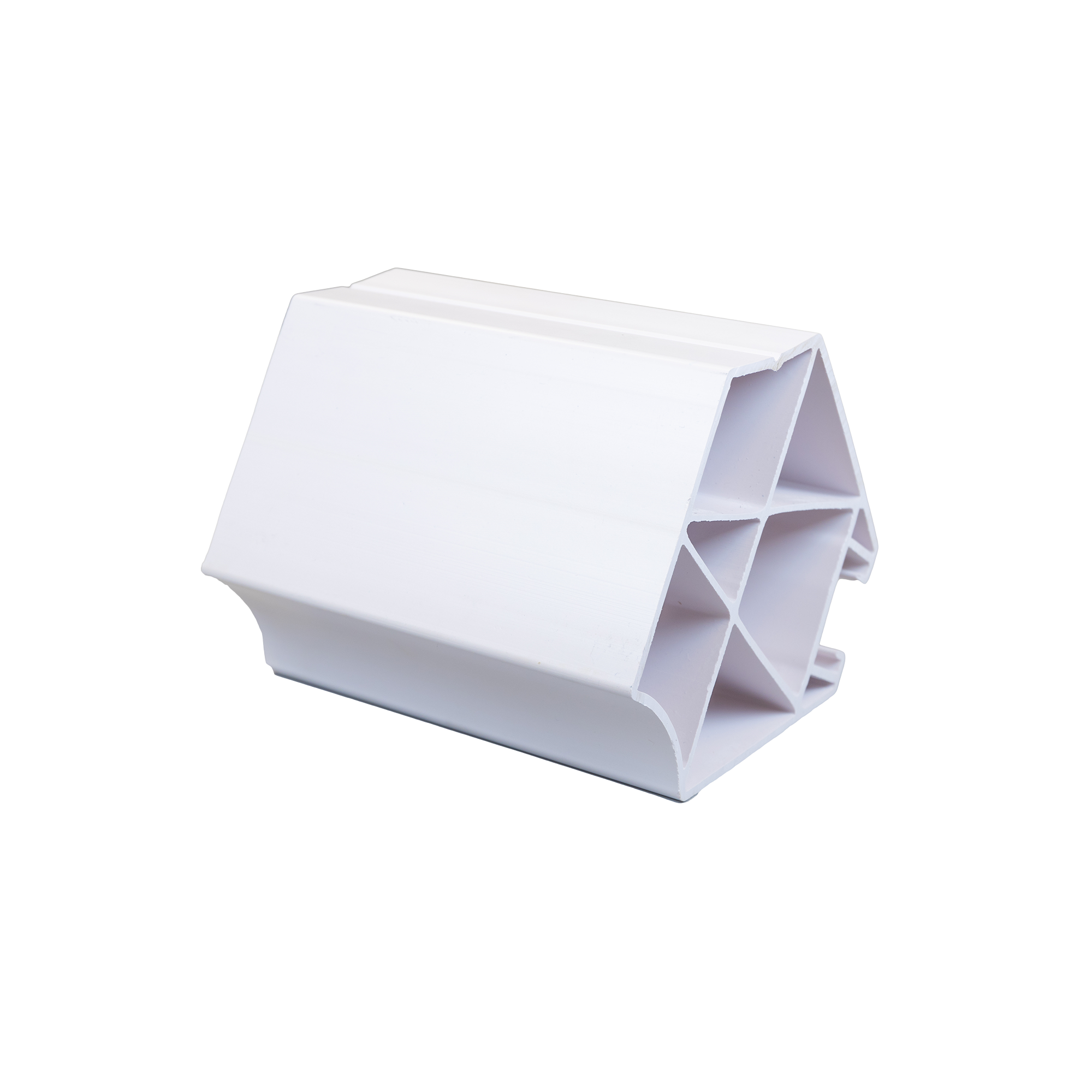

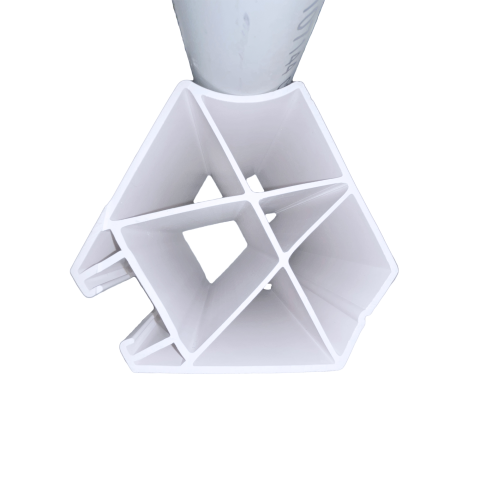

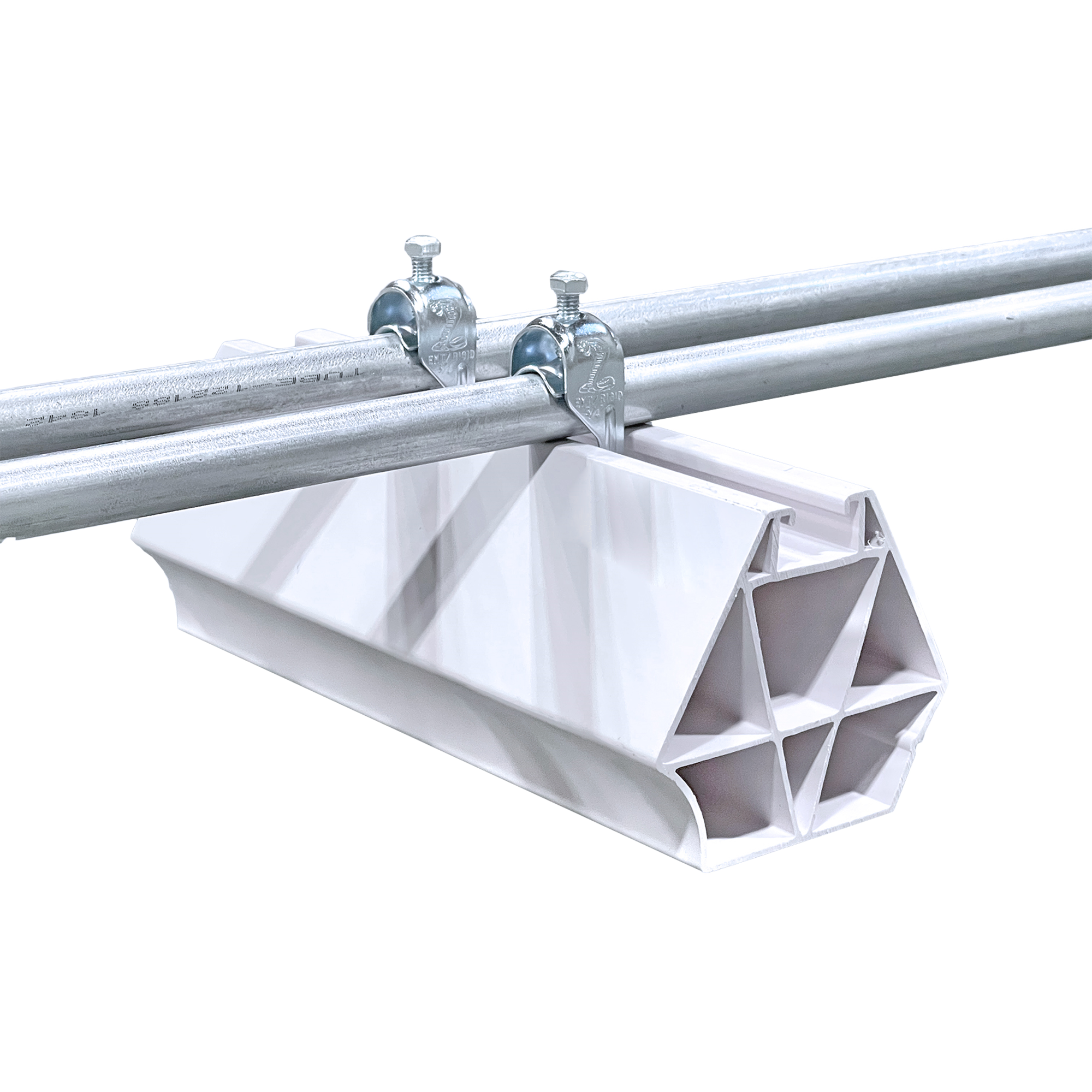

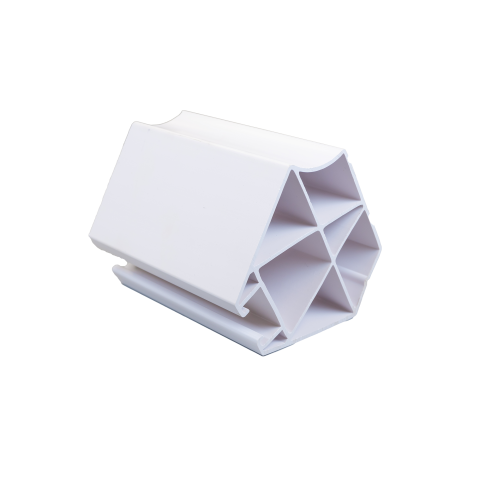

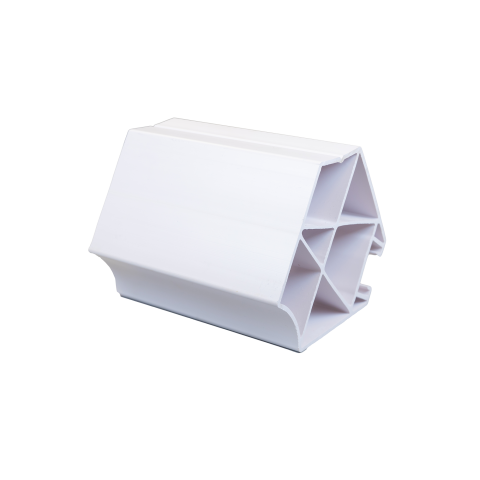

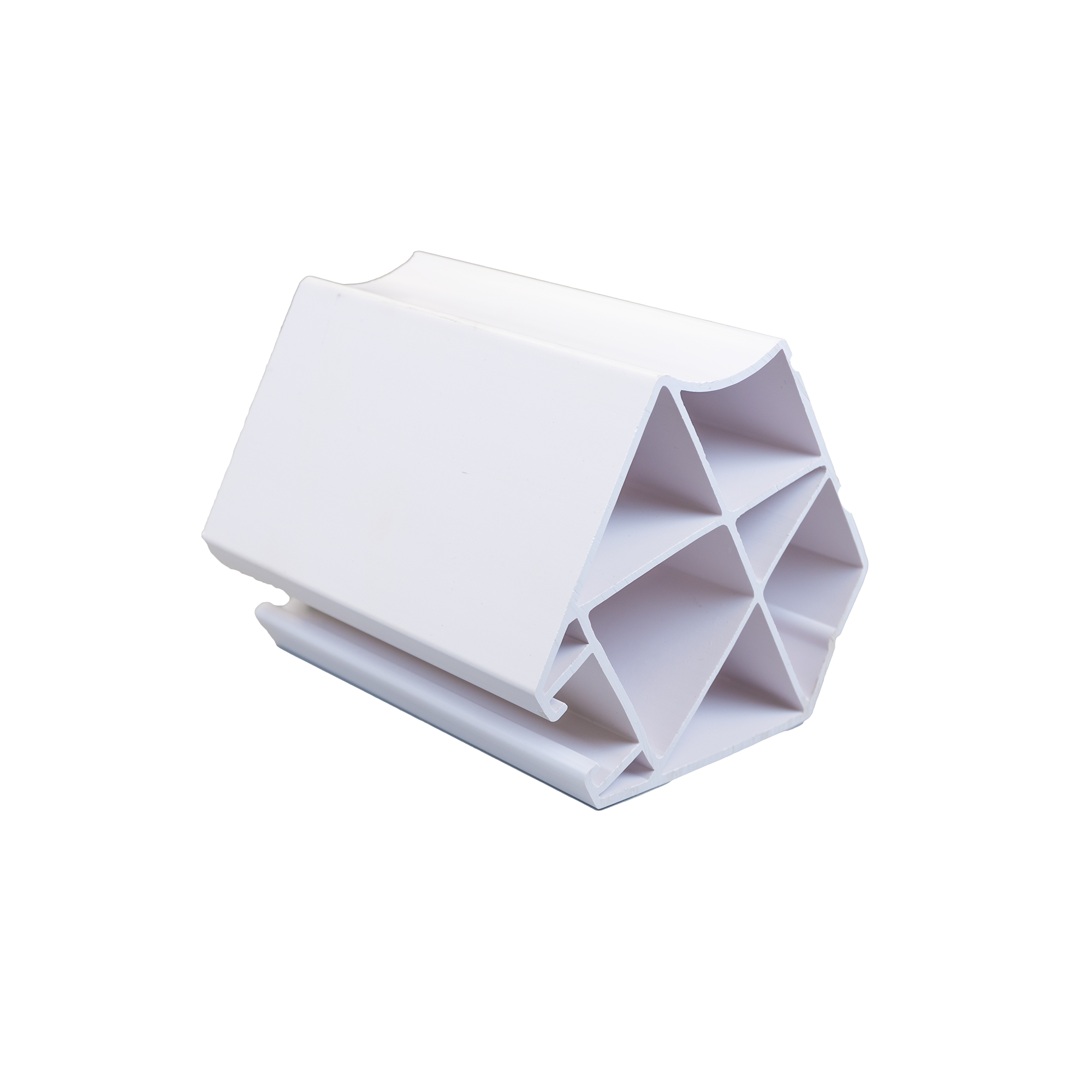

The Miro-CG M-Hex Rooftop Pipe Support is an affordable option for supporting a large variety piping and conduit of a commercial roof. This very unique and ingenious design allows 3 major option for supporting pipes. The strut side can be used to attach clamps & fittings for conduit & other various applications. This support also has a pipe seat side that will allow you to place up to a 3″ pipe directly on the saddle. The 3rd side is the drill side where you can attach your own accessories. Miro’s M-Hex supports are made from PVC with 3% CPE (Chlorinated Polyethylene) for improved impact resistance, weather resistance and exceptional weather resistance.

Specifications and Features

• Material: PVC with 3% CPE (Chlorinated Polyethylene is known for a high resistance to chemicals, heat and UV light. It’s also used as an effective flame retardant.)
• Size: 4.5″ height by 3.2″ width
• Warranty: Manufacturer 2 year limited warranty
• Sizes/Lengths: 6″, 12″ and 36″
• Spacing: Do not exceed 10′ on center

Suggested Load

• 6″: 58 lbs at 3 PSI applied to surface. Max product load = 300 lbs.
• 12″: 117 lbs at 3 PSI applied to surface. Max product load = 600 lbs.
• 36″: 351 lbs at 3 PSI applied to surface. Max product load = 800 lbs.

Downloads

Miro M-Hex Product Data Sheet
